Chart 7: Number display #3

POSTED: | UPDATED: | by Stefan Schüttenkopf

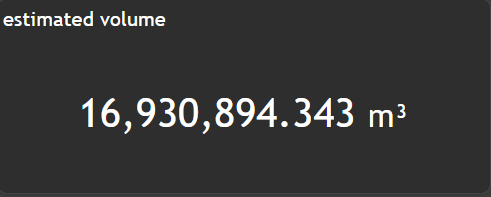

The result of this tutorial is to create the following Number display widget

We want to show all necessary settings in order to achieve that. Every needed tab in the Widget configuration window is highlighted with a seperate header.

General

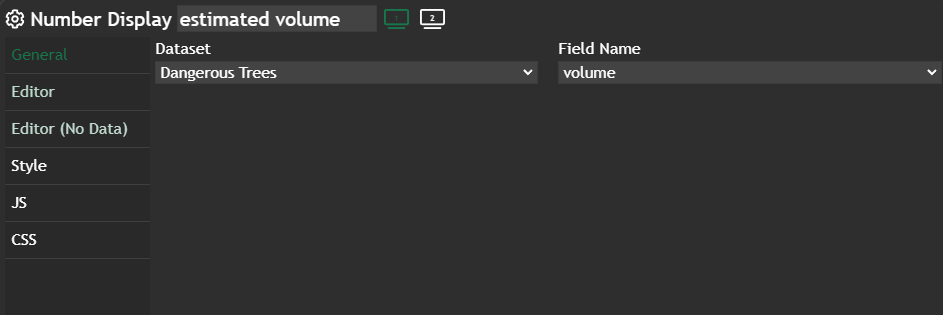

In this tab the only thing we change is the Chart title to estimated volume and change the Field Name to the corresponding column.

Editor

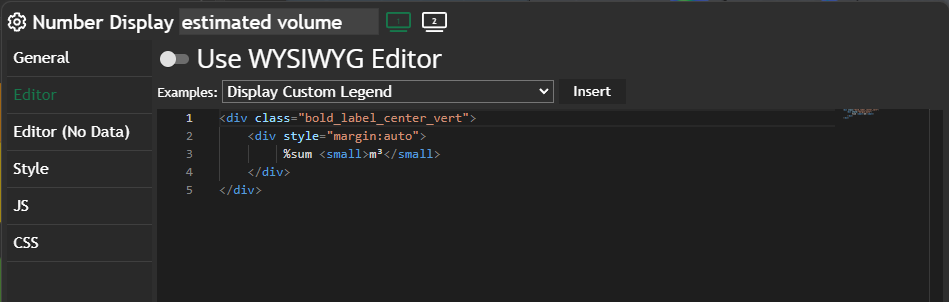

If you don't use the WhatYouSeeIsWhatYouGet (WYSIWIG) Editor, you will get a full-blown code editor with autocomplete and Intellisense. We define a %sum, which gives us automatically the total number of currently visible geometries in the Map widget. We are re-using the same CSS class as defined in this post.

Further information

If you need further information about this kind of widget, please visit the following link.
