Q4 2024 Released

M.App Enterprise 2023 Update 6 (16.12.0)

This article contains information about recent changes to the M.App Enterprise platform, including new and enhanced features, updates to existing features, and bug fixes.

Download

Release Guide
Release Guide.pdf
5 MB
download-circle
The full install is available for download through the Hexagon Safety, Infrastructure & Geospatial Licensing Portal.
  • Run M.App Enterprise.exe on the M.App Enterprise server
  • Run the M.App Enterprise Tile Services.exe on the Tile server
Lesson 1: Installing M.App Enterprise
In this tutorial you’ll find some detailed information about the installation of M.App Enterprise. It contains four categories for each and every single application, which comes within platform. 💡Before installing M.App Enterprise you need to create an empty database. This applies to the Master database (metadata schema for
M.App EnterpriseStefan Schüttenkopf
  • (optional) Geoprocessing (Setup.exe under consolidated-installer-enterprise-16.6.3.44)
  • (optional) LuciadFusion for M.App Enterprise (LuciadFusion.exe)
Lesson 1 (optional): Installing Luciad Fusion for MAE
This article gives you some information about the installation of Luciad Fusion, which is integrated since the release of M.App Enterprise 2019. 💡We strongly recommend to install Luciad Fusion on a seperate server.💡For the storage of the metadata you will need to create an empty database before installing
M.App EnterpriseStefan Schüttenkopf

Prerequisites

  • Microsoft .NET 4.8 or higher
  • IIS 8 or higher

Supported databases

  • PostgreSQL 9.4 and later
  • Microsoft SQL Server 2012 and later
  • Oracle 12c and later

For all System requirements please have a look here:

Lesson 0: System requirements
Server Computer / Processor 64-bit: Intel® 64 (EM64T), AMD® 64 or equivalent (Multi-core processors are strongly recommended Memory (RAM) 8 GB or more strongly recommended Disk space 1.3 GB for software Production environment Two different types of server: * One application server * One tile server (for cache creation) If M.App
M.App EnterpriseStefan Schüttenkopf

New platform

Windows Server 2025

Windows® Server 2025 is now also officially supported in M.App Enterprise. Test cycle was successfully completed since the official release of the server OS beginning of October 2024.

New technology

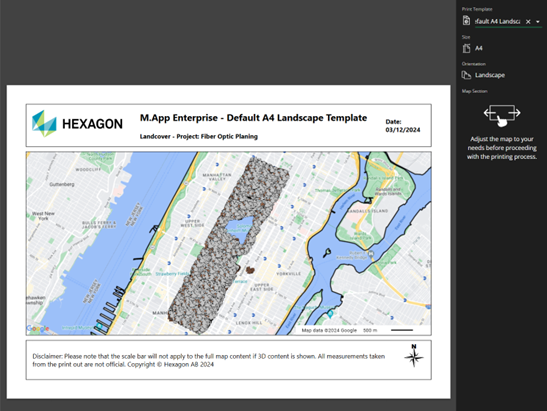

Browser Printing

With this update of M.App Enterprise we are introducing Printing in Browser Applications. Because on the browser side a different approach than on the Desktop side is chosen, Print Layouts are kept in the different sections of the clients in the MAE Studio. Browser Print Layouts are based on HTML / CSS / JS. Here are steps to follow to see your defined template in the browser application:
  1. Upload your HTML file in Browser → Print Layouts
  2. Add your Print Layout(s) to the MapView
  3. Define a default one → not necessary when you just have one
  4. Start Browser Application
  5. Click on the icon in the menu
  6. A preview will open, where you can choose the Print Layout
  7. Only applicable when having more than one
  8. Click Print to start the browser print dialog box
  9. Click Print to print your template

MAE goes Container

Docker is a platform that allows developers to build, ship, and run applications in lightweight, portable containers. Containers bundle an application and its dependencies into a single package, ensuring consistent behavior across development, testing, and production environments. Docker provides tools to create, manage, and orchestrate these containers, making it easier to deploy and scale applications.

Windows Containers are a specific type of container designed to run on Windows systems. They work similarly to Linux containers but leverage Windows technologies to isolate and manage applications. Windows Containers can run natively on Windows Server or Windows 10/11, supporting .NET applications and other Windows-based workloads. They are essential for modernizing Windows applications and integrating them into containerized environments.

With this M.App Enterprise release we are happy to announce the support of Windows Container on Docker.

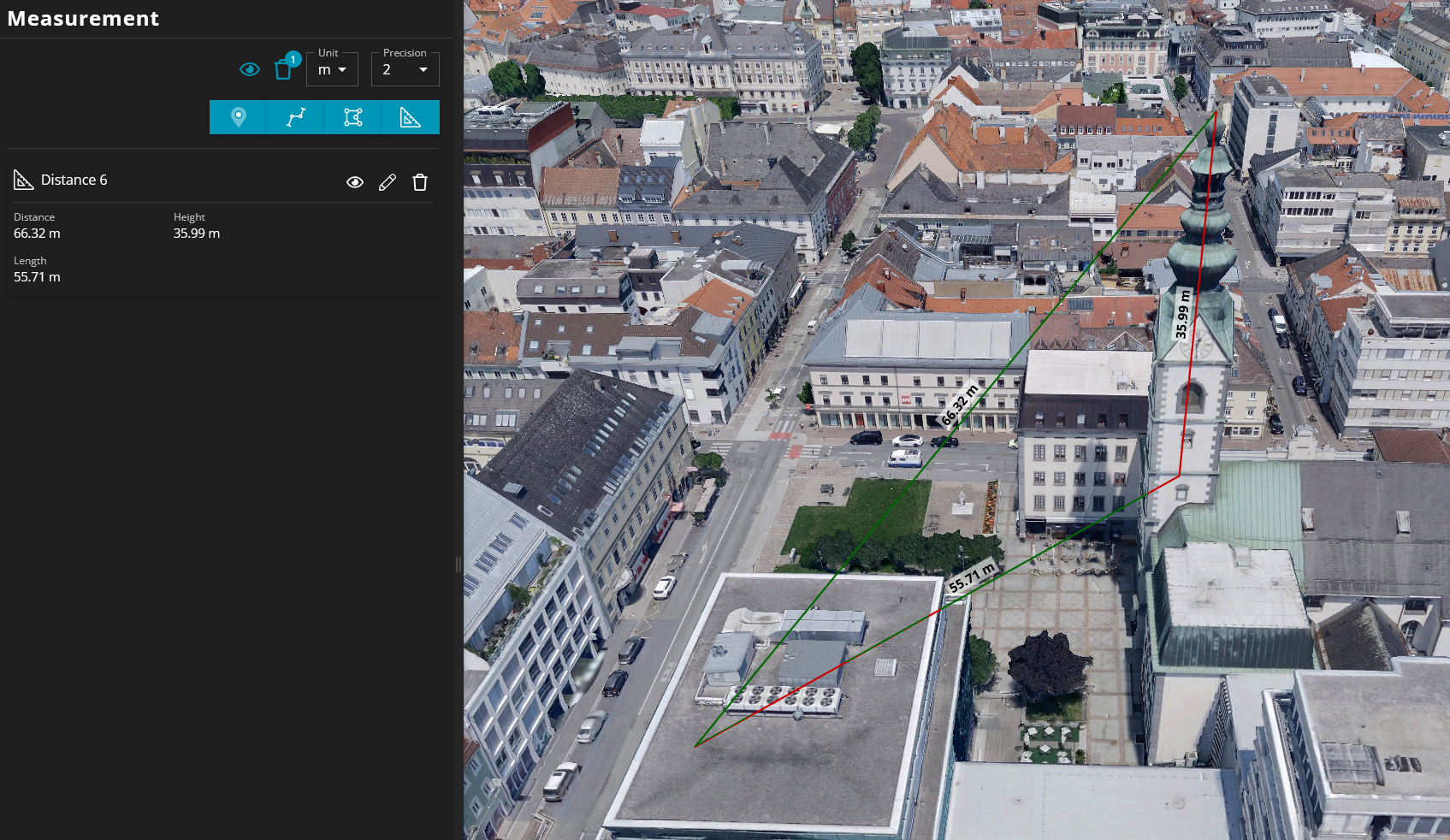

Browser Measurement Improvements v2

The next iteration of improvements coming to Browser Measurement in this update of M.App Enterprise. The following items are included:

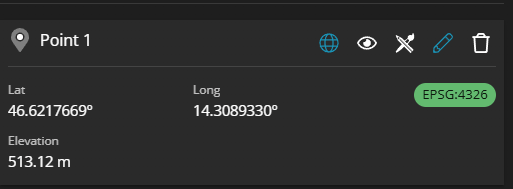

  • EPSG definition of Point Measurement within the MapView form
    • Showing the EPSG code in the Point Measurement result panel

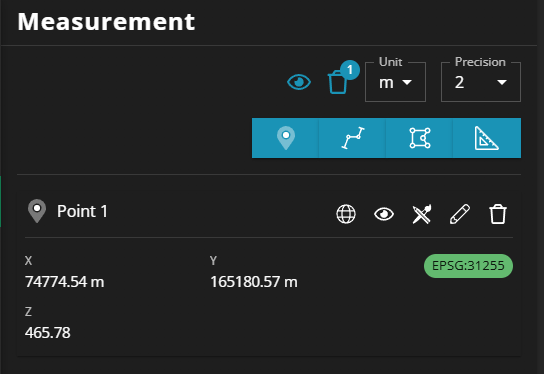

  • Change of precision within the Measurement panel in the Browser Applications
  • Improved design / layout of Measurement results

Various bug fixes

Update Luciad portfolio

As per every release the Luciad portfolio also got updates in this M.App Enterprise 2023 update release.

LuciadFusion 2023.1.28
LuciadRIA 2023.1.21
