Functions (Browser App)

Measurement (Browser)

Browser measurement tools enable length and area measurements within a browser application. This post is intended to show all the possibilities for users.
💡
As the name implies, browser measurement tools are exclusively usable within browser applications.

Presettings

To use measurement tools within a browser application, you must incorporate these functions into the Map View settings first.

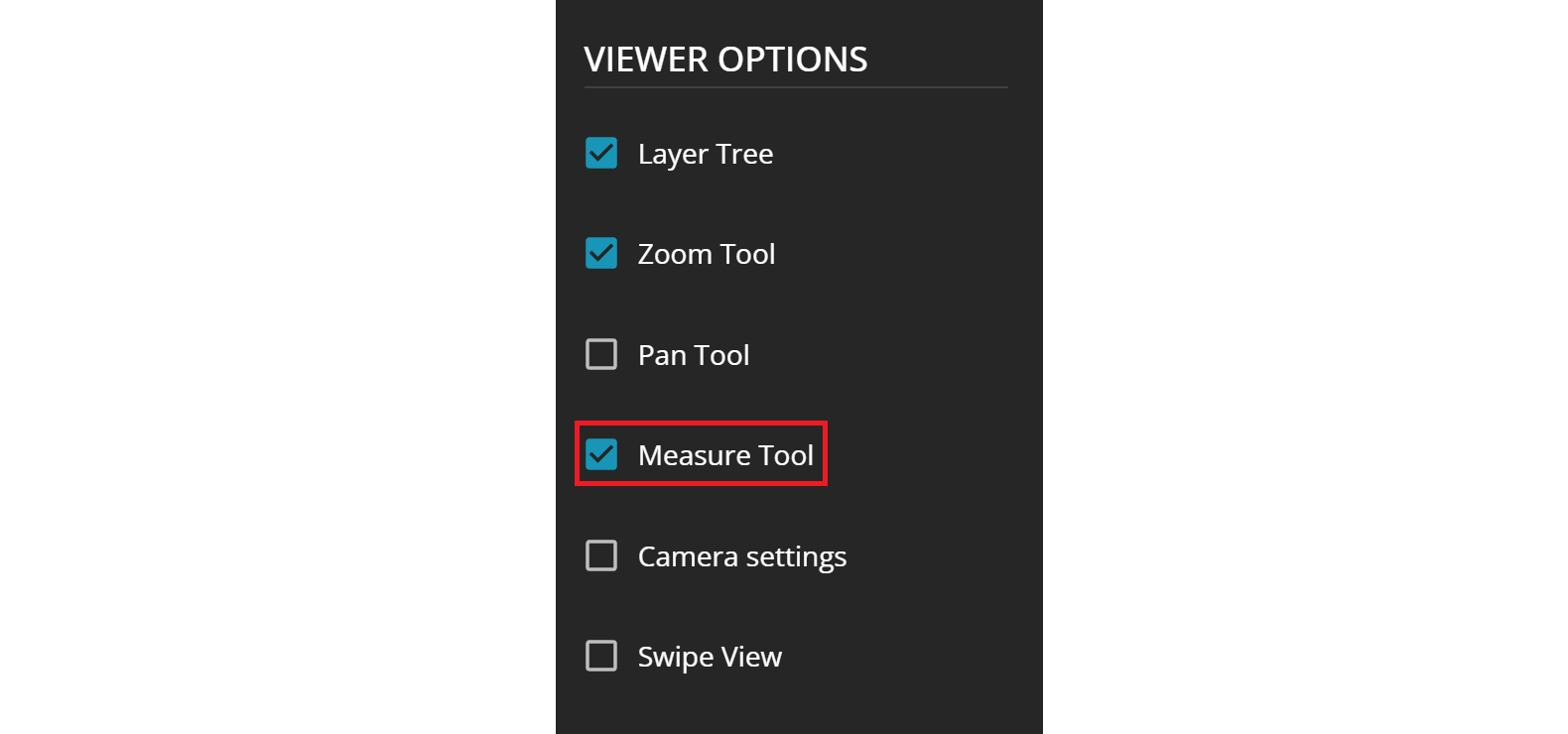

Select Measure Tools in the viewer options of a map view to enable the measurement tools. Additionally, within the measure tool section, users have the option to select their preferred starting unit of measurement (uom) as well as the EPSG code for measuring:

  • meter
  • kilometer
  • mile
  • yard
  • foot
  • inch
  • nautical mile
  • US survey foot
In the browser application the unit of measurement (uom) can be changed to the user's liking.

Usage in a Browser App

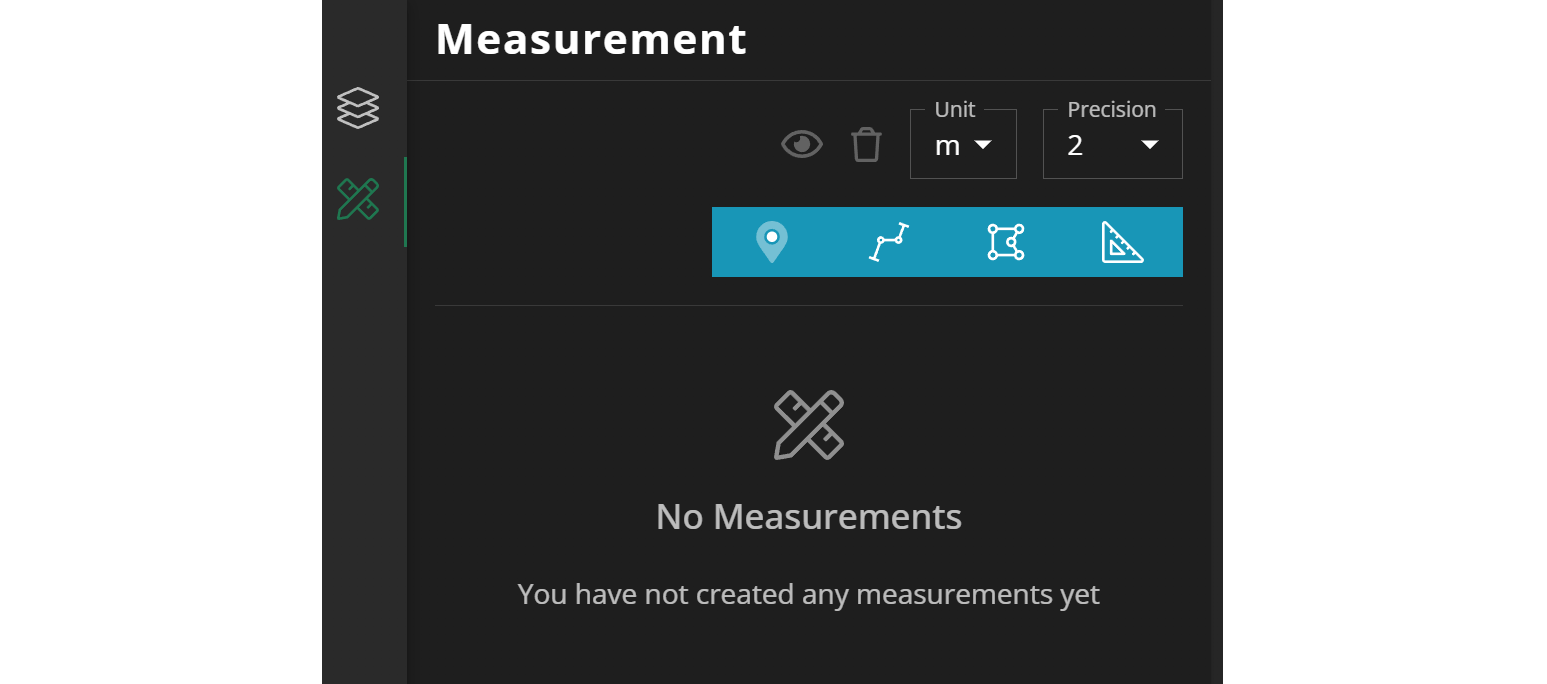

Upon opening your browser application, you will notice a new icon featuring a pen and a scale positioned beneath the legend icon. Clicking on this icon will reveal the complete measurement tool along with its various options.

On top you have some buttons:
  • Visibility: Setting ALL measurements to visible or invisible
  • Recycle bin: Deleting ALL measurments
  • Unit: Per default to the value set in the MapView. Can be changed to your liking
  • Precision: Specifies the number of decimal places
To initiate the measurement mode, you will have several options:
  • Point
  • Path
  • Area
  • Distance
⚠️
By double-clicking, you can conclude the measurement. If you hit ⏎ or ␛ you will abort the measurment.
⚠️
Per measurement you have the option to hide, edit (🖉) or delete (🗑) it, when you click on the icon with three bars (☰)

The following screenshots show you what options you have and how it will look like in the map:

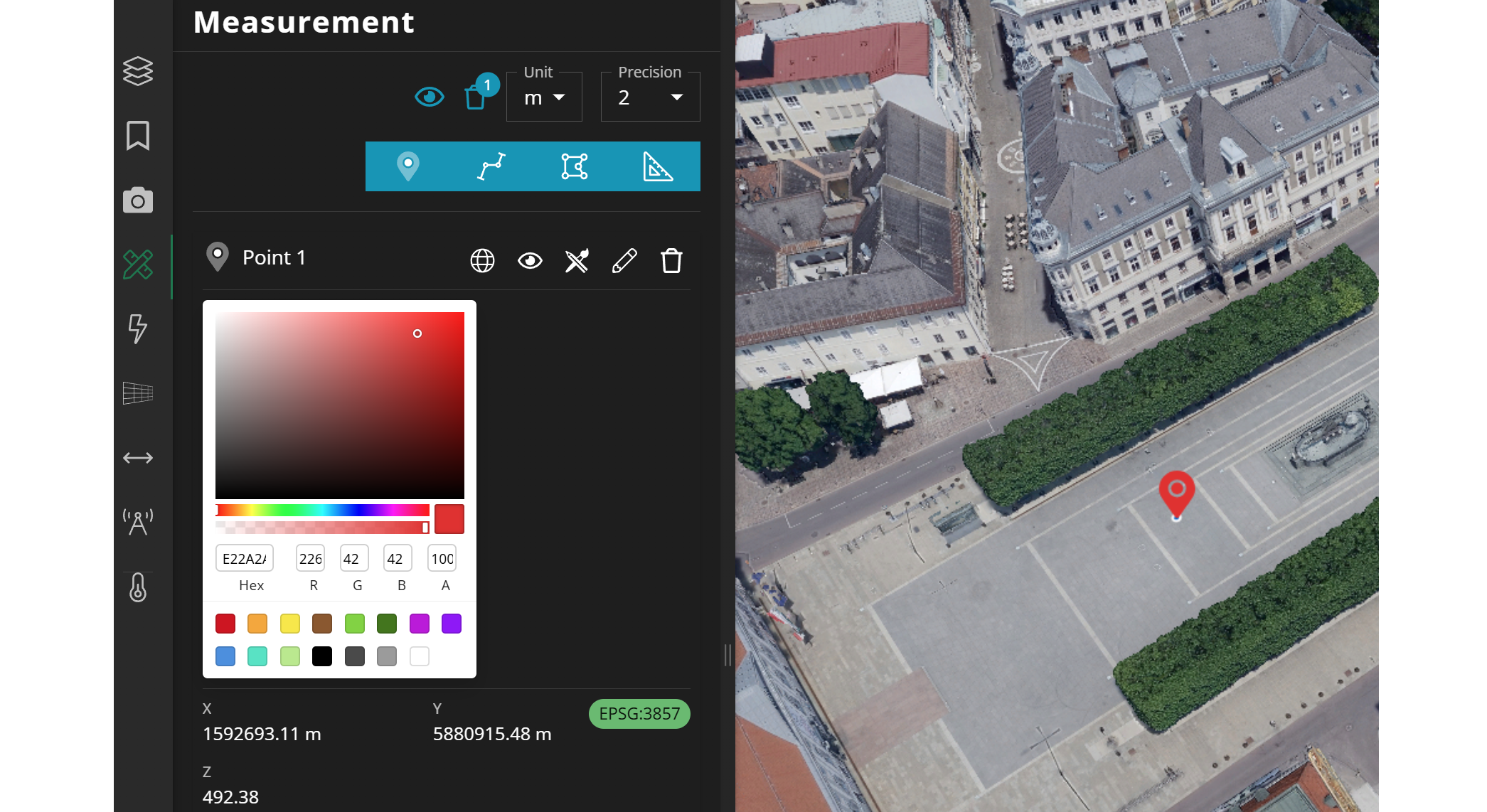

Point

For Point measurement you have some more options:
  • Switch geocentric / local to geographic coordinates
  • Defining custom styling
P

Starting from version 16.12, you will not only see the x, y, z coordinates but also the specific coordinate reference system, represented by its EPSG code.

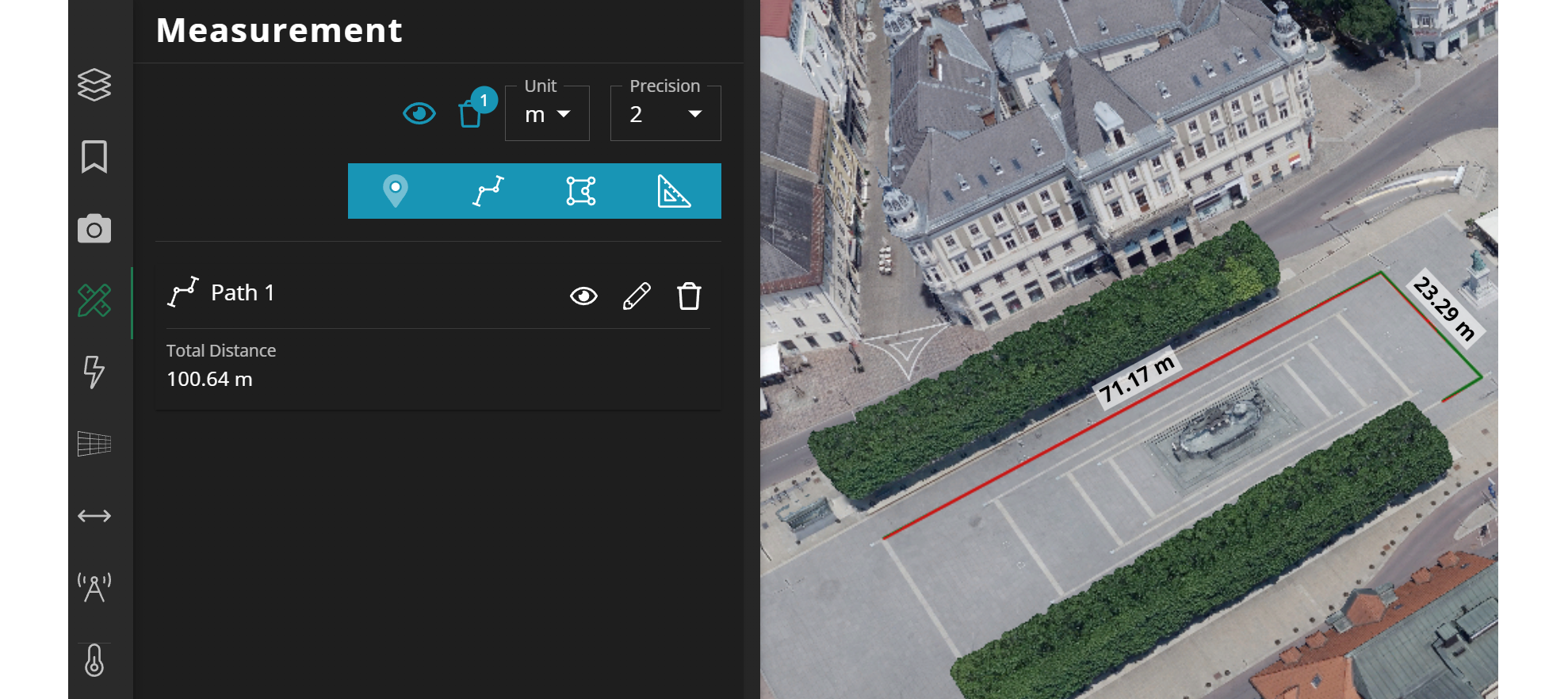

Path

Path measurement gives you a label per edge on the map and an accumulated distance value on the left hand side.

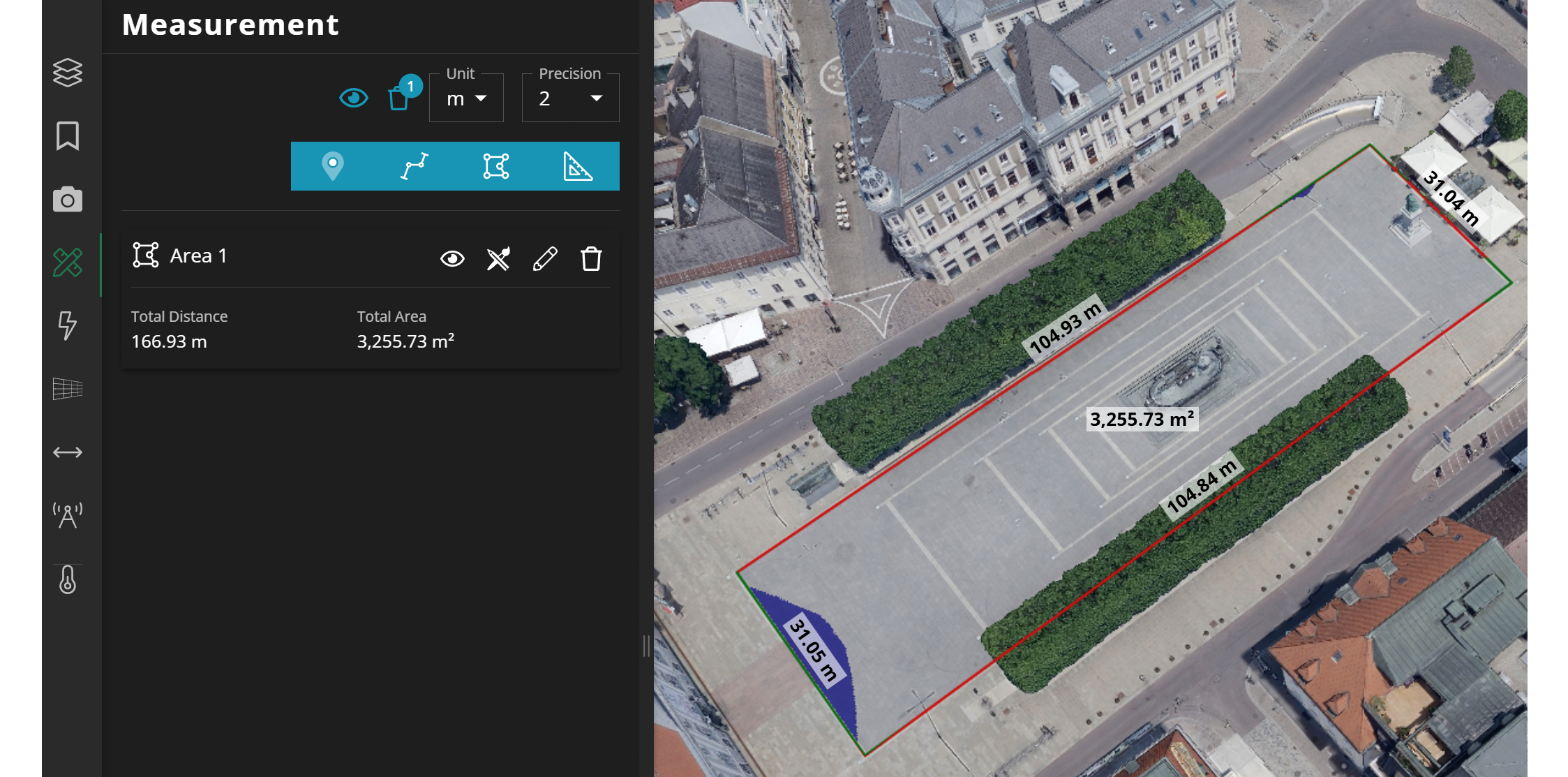

Area

💡
Because a 2D shape is drawn for Area measurement you can directly see what areas are below the elevation mode IF you use one in your application. Again, use the style option for custom coloring

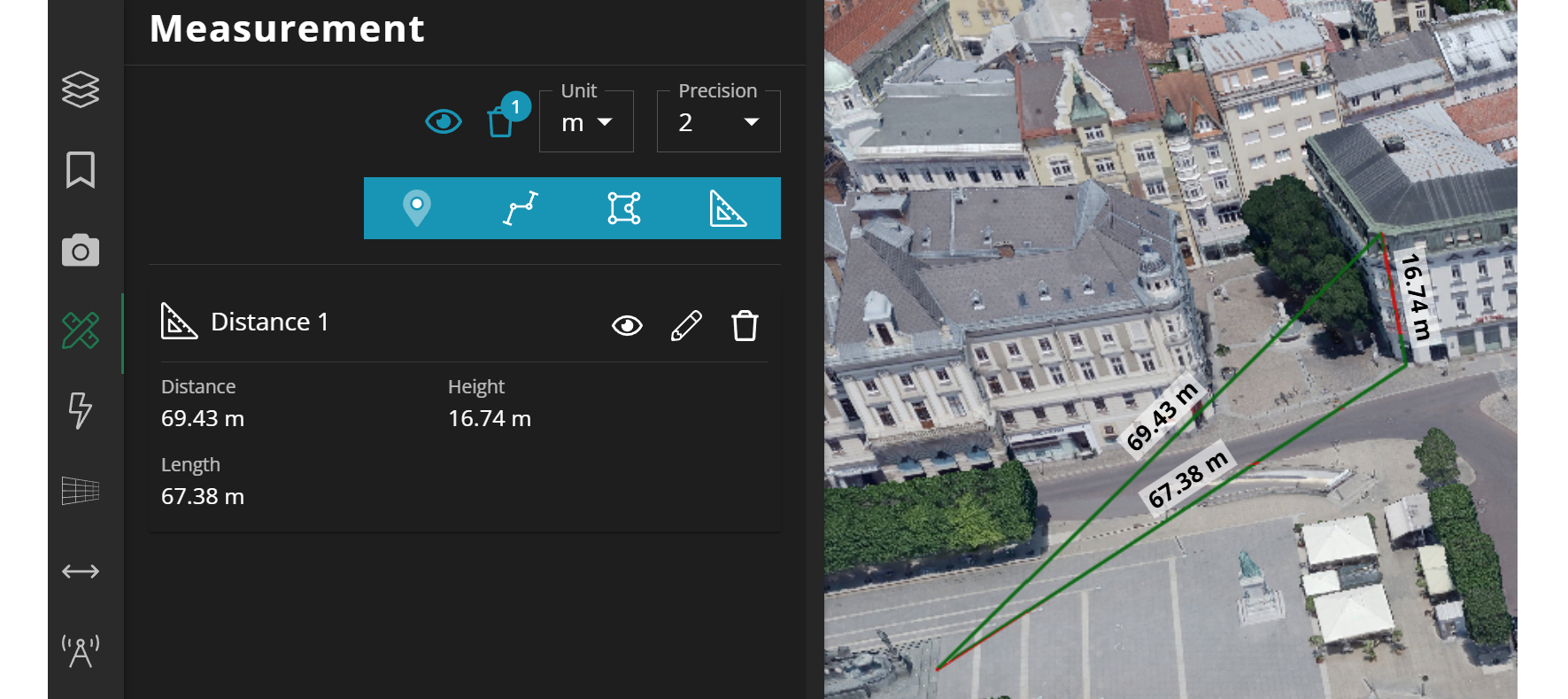

Distance

💡
Distance measurement only makes sense on a 3D map. If you have a 2D map or you just want to have the distance between Point A and Point B please use Path measurement.
When you finished the measurement (double-click as mentioned above) you will get three data values on the left hand side.
  • Distance line between Point A and Point B
  • Height: line from Point B vertically locked to the ground
  • Length: line from Point A to Point B horizontally locked
💡
Please note that your measurements will not be saved when you refresh or close your applicaton.
